SCHIZZO® Handle Bar Switch Control Set

Shipping time:
aprox. 1-3 Workdays aprox. 1-3 Workdays (abroad may vary)
219,00 EUR

incl. 19% tax excl. Shipping costs

Set:
Description

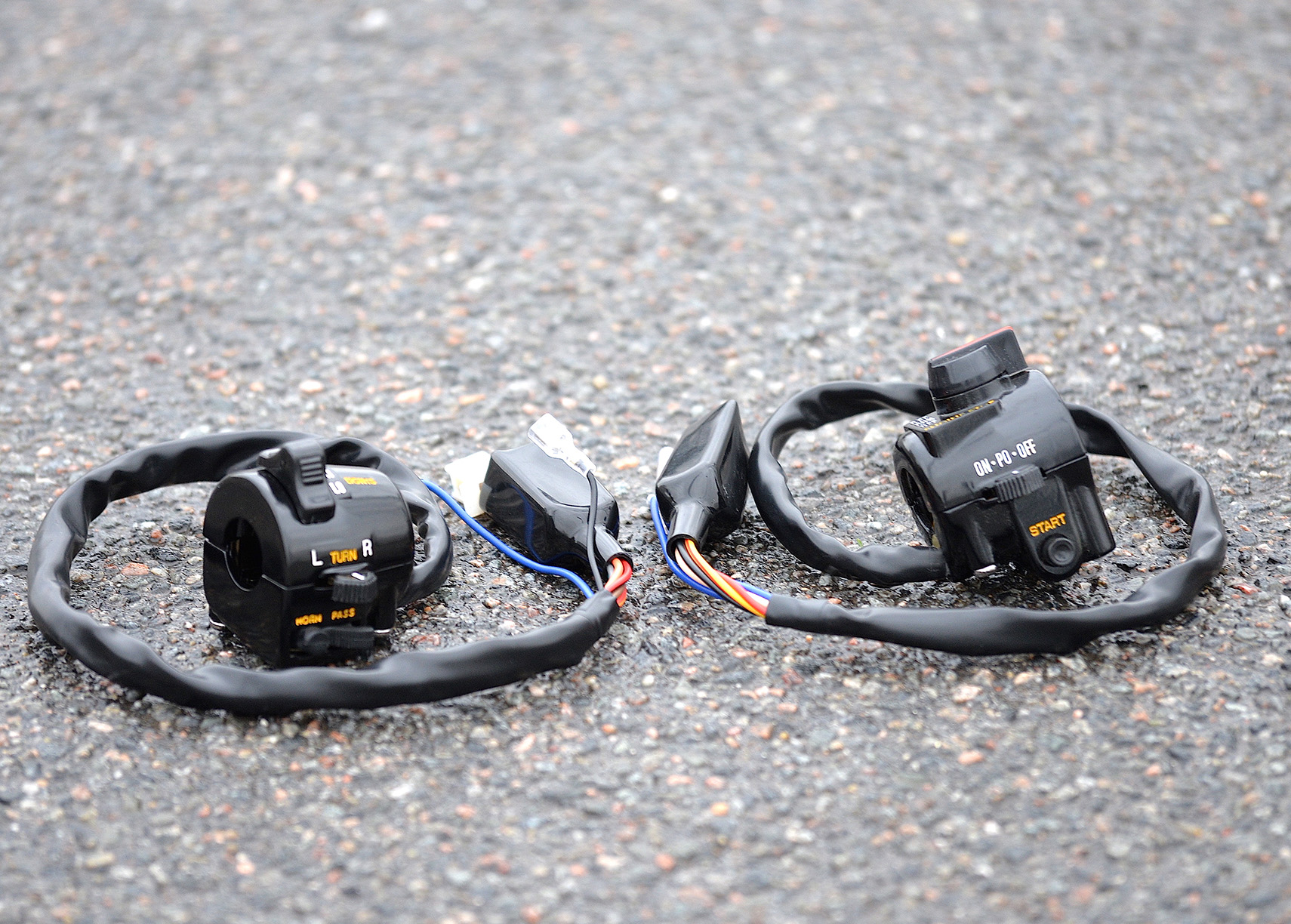

Complete Handle Bar Switch Control Set for left & right side as we use them on our SCHIZZO® BMW's.

The switch units are made out of solid cast Aluminum and comes including wiring harness, ready to install.

This switch control set is very reliable and very easy to operate while driving, even with gloves.

Fits all 22mm and 7/8" handlebars!

A matching Throttle Sleeve is available separately.
Cable assignment

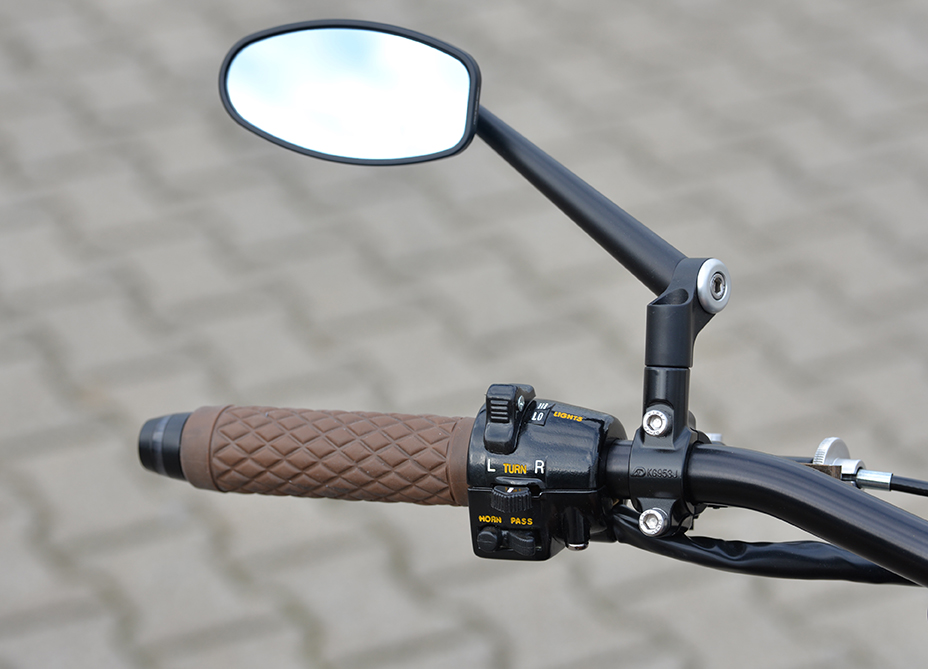

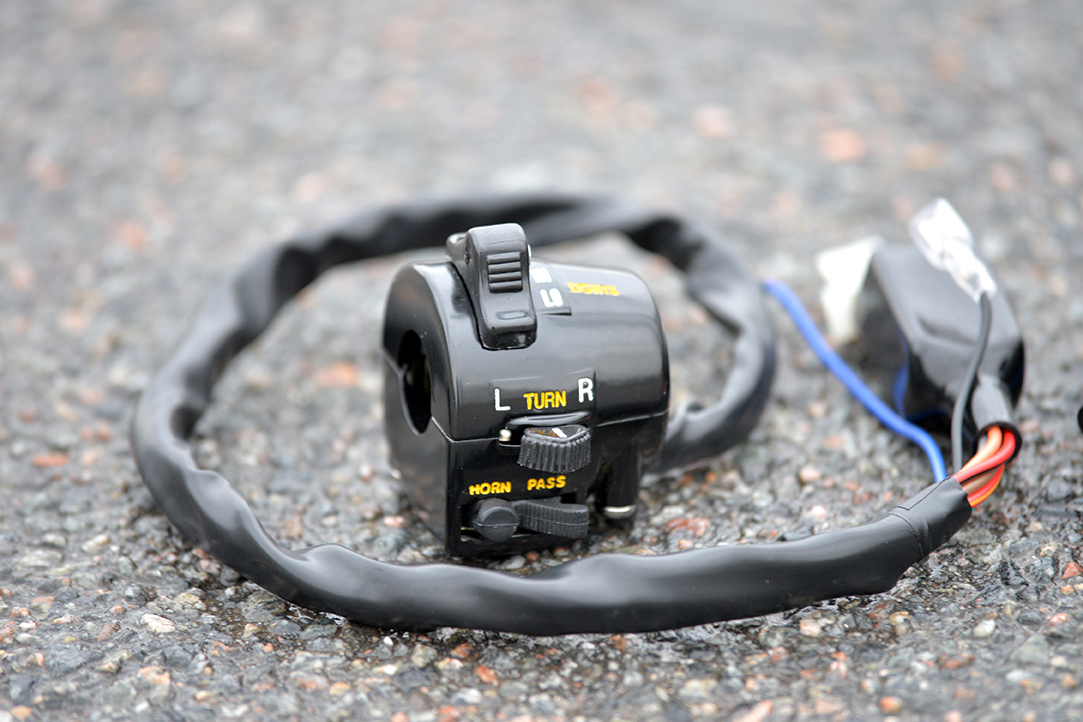

Left Control
Lightplus blue
Switch-low beam red/yellow
Switch-high beam red/black
Indicatorplus orange
Switch indicator left green
Switch indicator right grey
Horn plus black
Horn ground Housing
Flash light horn red/black
Flash light horn brown

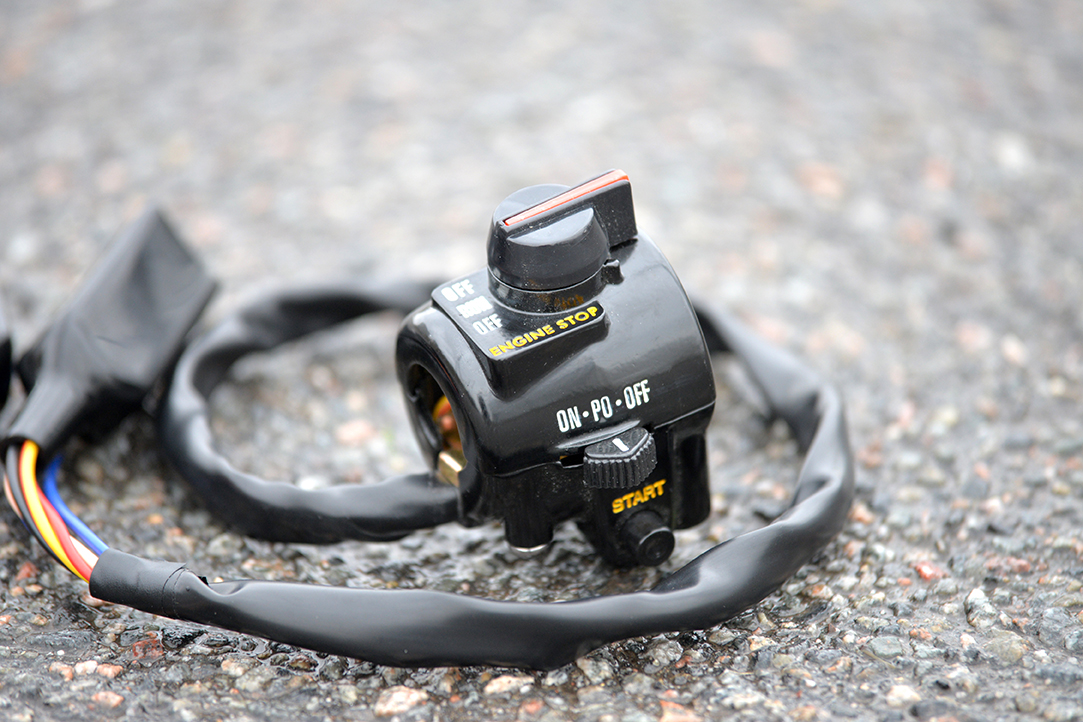

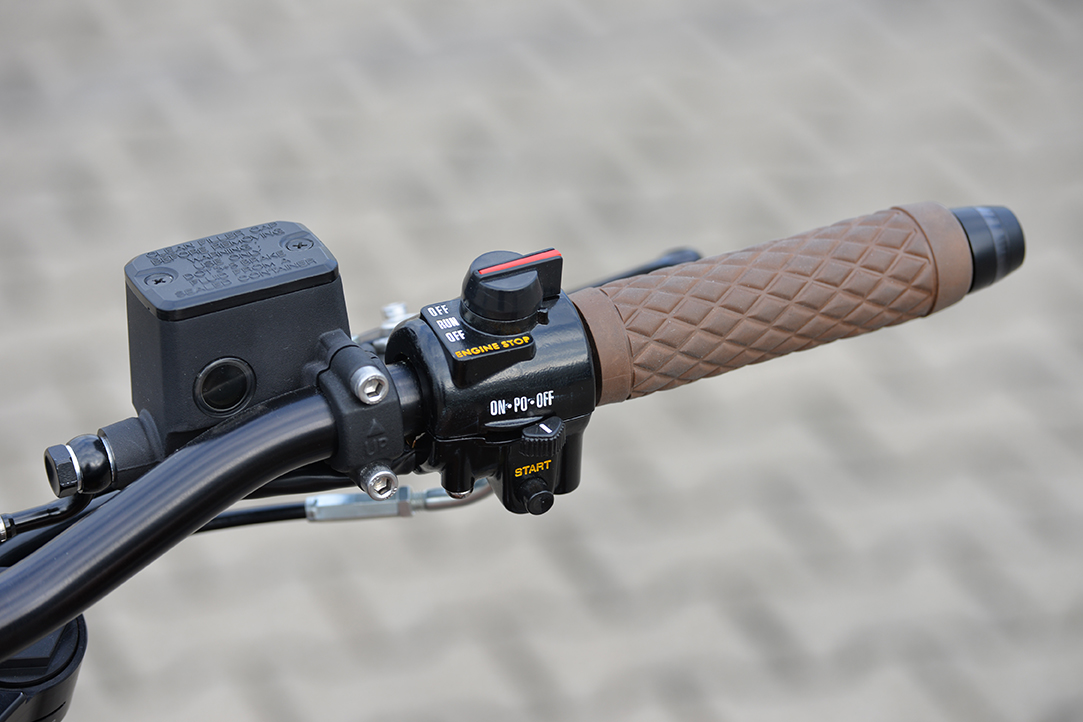

Right Control
Switched plus red
Parklight blue/red
Runlight/driving light blue
Switched plus pink
Starter black
Ignition coil yellow/red
Product security
Manufacturer's information:

WalzWerk GmbH
Altriper Straße 7, 68766 Hockenheim, DE
info@walzwerk-motorcycles.com
www.walzwerk-motorcycles.de

This product is compatible with (for example):

Handle Bar "Low-Bar", 22mm
WALZWERK® Aluminium Handle Bar "Low-Bar", 22mm (7/8")
Original WalzWerk® 22mm Aluminum Handle Bar are made out of the best high-grade Aluminum and have a brushed structure and a black anodized finish.
99,00 EUR
Handle Bar "Fat-Bar", 28mm
WALZWERK® Aluminium Handle Bar "Fat-Bar", 28mm
Original WalzWerk® 28mm Aluminum Handle Bar are made out of the best high-grade Aluminum and have a brushed structure and a black anodized finish.
99,00 EUR
Throttle Kit
SCHIZZO® Throttle Kit
If you use our SCHIZZO® Mini Handle Bar Switch Kits, it is necessary to use this special Throttle-Kit.
29,90 EUR
Brake- and Clutch Lever Unit
SCHIZZO® Brake- and Clutch Lever Set
These full adjustable Brake- and Clutch lever set is specially designed to upgrade our SCHIZZO® Brake Master Cylinder and our special SCHIZZO® Clutch Lever Unit.
249,00 EUR
Brake Master Cylinder
SCHIZZO® Brake Master Cylinder
A special configurated Brembo Brake Master Cylinder which we use on almost all of our SCHIZZO® builds. Works perfect with the stock dual 2-piston Brembo BMW Brakes.
189,00 EUR

Customers who bought this product bought also the following products:

Throttle Kit
SCHIZZO® Throttle Kit
If you use our SCHIZZO® Mini Handle Bar Switch Kits, it is necessary to use this special Throttle-Kit.
29,90 EUR

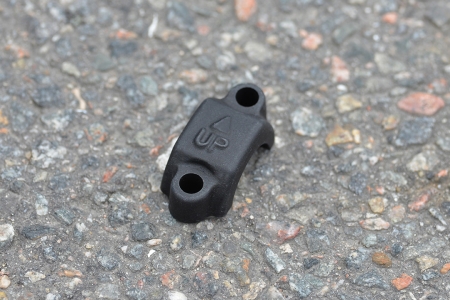

Clamp for Brake & Clutch Lever
SCHIZZO® Clamp for Clutch and Brake Levers when mounting Handle Bar End Mirrors

Special handle bar clamp for clutch and brake levers, suitable for our SCHIZZO® controls if no mirror is to be installed.

16,90 EUR

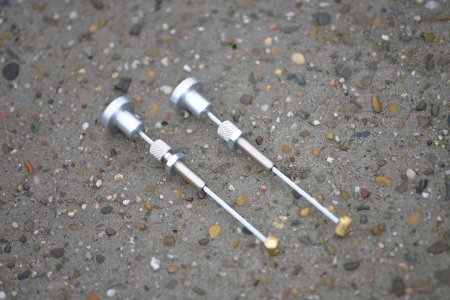

Manuel Choke Units, silver
SCHIZZO® Manuel Choke Units for BING-carburetor in silver
If you change the stock handle bar switches on your BMW, the stock choke cables doesn't work anymore. Therfor we offer a set of handmade beautyful manuel choke units.
39,90 EUR

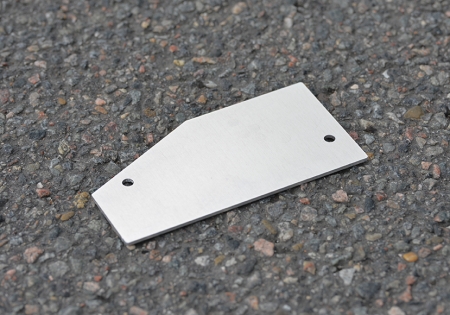

ECU Mounting Plate
